DK-505 dissolved ozone analyzer and controller
Characteristics
Recommended for ozone concentrations of 1ppm or higher
The most reliable ozone analyzer and controller
Display dissolved ozone concentration and water temperature
Controller relay output

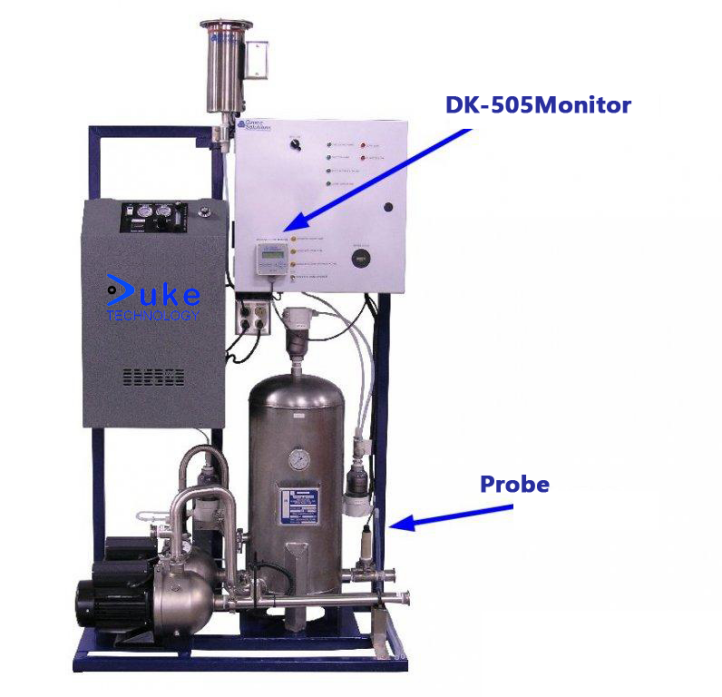

Support online installation
Overview
Dk-505 is a versatile ozone analyzer, which can be used in a variety of operation conditions, operation pressure in the range of 0~30PSI, This allows the sensor to be used online in many situations where no sample pool is required.
What's the difference of dk-505?
The dk-505 is significantly more versatile than other ozone analyzer because of its rugged, practical sensor probe. It is not as accurate as other dissolving ozone analyzer but other dissolving ozone analyzer require better control of water pressure and flow rate to achieve higher accuracy. But the dk-505 does not need the probe, which can be directly mounted on the water pipe to work stably and reliably without extreme control of pressure and flow rate.
Specification
Range : 0 - 10 ppm (0 - 10000 ppb) Accuracy +/- 1%
Resolution : 0.01ppm (10ppb) Limited detection: 0.1ppm (100ppb)
Display unit: ppm Response time: 1s
Measurement principle: polarography
Display : digital
Analog output: 4 - 20 mA,
Temperature range: 32 to 122°F (0.0 to 50°C)
Power supply: 24 VDC 0.25 A
Optional : 90 - 250 VAC 50/60 Hz External adapter
Dimension : 3.8 x 3.8 x 3.3 inches (9.5 x 9.5 x 8.3 cm)
Weight : 2 lbs (0.91 kg)
Fluid connector: 1 Inch MNPT
Maximum operation water pressure: 30 PSI (2.11 Bar)
Maximum pressure: 60 PSI (4.22 Bar)
Contact liquid medium Viton?FEP/PTFE Fluorinated plastic PEEK
Supporting documents: AV88 operation manual, dissolving ozone simulation module manual
Quality assurance period 1 year
Relay 2
